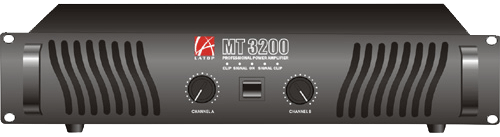

型号：MT3200/MT3300/MT3400/MT3500
* LATOP专业功放采用世界最先进的电源电压随输出信号浮动的新技术，降低功率管的热损耗和失效几率，并同时研发最先进的全电子快捷保护系统，杜绝继电器触点在大电流通过时带来的音质负面影响；
* 开机智能延时软启动；
* 短路保护/过流保护；
* 输出直流保护/过热冷却保护/智能自动限幅。
SPECIFICATIONS |
| Model |
|
MT3200 |
MT3300 |
MT3400 |
MT3500 |
| Stereopower hendling per Chanel@1khz,0.1%THD |
8Ω |
200W |
300W |
400W |
500W |
| 4Ω |
300W |
450W |
650W |
800W |
| 2Ω |
500W |
750W |
1000W |
1200W |
| Bridge-mono power 1khz,0.1%THD |
8Ω |
600W |
800W |
1000W |
1200W |
| 4Ω |
1000W |
1500W |
1800W |
2300W |
| Frequency response |
|
+0.25dB/-02.5dB from 20Hz to 20KHz |
| Distortion |
|
No more than 0.1%THD |
| Hum and noise |
|
110dB |
| Input sensitivity |
|
Selectable,0.775v,1.0v,1.5v,Shipped at 1.0v rated output |
| Slew rate |
|
Closed loop response greater than 40V/μsec |
| Damping factor |
|
500:1 at IKHz |
| Connectors |
|
1/4 x 2XLR x 2 |
| Cooling |
|
High efficiency,Two auto Speed-controlled fan |
| Weight |
|
18Kg |
19Kg |
22Kg |
24Kg |
|
适用范围 |
- Sound Reinforcement
- Clubs, Karaoke Clubs, Health Clubs
- Offices, Classrooms, Meeting Rooms
- A/V Systems
- Houses of Worship
- Sport Facilities
- Distributed Systems
|
|
